IBM X3250 M3 Xeon 4C X3460
For at se vore priser skal du være oprettet som kunde: Er du allerede oprettet som kunde skal du logge ind.
|
|
IBM X3250 M3 Xeon 4C X3460
|
Beskrivelse
Specifikationer

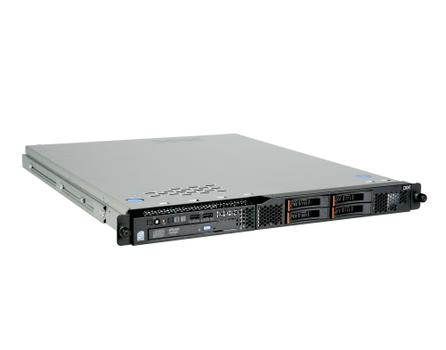

IBM System x3250 M3
- Maximise performance with the latest Intel technology in a robust, flexible platform
- Achieve energy savings with built-in power management tools
- Minimise risks with trouble-free serviceability and maintenance
The IBM System x3250 M3 is a single-socket server that offers new levels of performance and flexibility to help you respond quickly to changing business demands. Cost-effective and compact, it is well-suited for small to mid-sized businesses (SMBs) as well as large enterprises (LEs), whether for general-purpose workloads or specialised applications.
Amplify your performance
Built with the latest Intel Xeon® 3400 Series processors, the x3250 M3 has industry-leading computing capabilities in a small, 1U footprint. It also offers substantial memory and storage capacity to help you manage your data efficiently.
IBM System x3250 M3
| |
|
| General |
| Model name |
425262U |
| Architecture |
| Slots x Bays total (available) |
2(2) x 5(5) |
| Form factor |
1U Rack |
| Orientations allowed |
Horizontal |
| Hot swap bays |
4 |
| Form factor |
1U Rack |
| Orientations allowed |
Horizontal |
| Hot swap bays |
2 |
| |
|
| Processor |
| Processor (CPU) |
Intel® Xeon™ Processor X3460 4C |
| Processor speed |
2.8GHz |
| Front side bus (FSB) |
1333 MHz |
| Internal L2 cache memory size |
8 MB |
| SMP processors max |
1 |
| Bios type |
Flash |
| SMP processors std |
1 |
| |
|
| System Memory |
| Memory (RAM) std / max |
2GB/16GB |
| RAM Type |
DDR3 |
| Optional RAM configuration |
1GB:2GB:4GB DIMMS |
| RAM slots total |
6 DIMM |
| RAM slots available |
4 DIMM |
| |
|
| Graphics |
| Video RAM max |
16MB |
| Description |
ATI ES1000 (RN50) |
| Description |
Matrox G200 VGA Core |
| Video RAM type |
DDR2 SDRAM |
| |
|
| Communications |
| Description |
Dual Channel 10/100/1000 Integrated - Gigabit Ethernet |
| Network card Interface |
Gigabit Ethernet- Integrated |
| |
|
| Weight and Dimensions |
| Weight (imperial/metric) |
28.0 lbs/12.7 Kg |
| Height (imperial/metric) |
1.75 in/43.0 mm |
| Width (imperial/metric) |
17.32 in/440.0 mm |
| Depth (imperial/metric) |
22.0 in/559.0 mm |
| |
|
| Security |
| Security features |
Power-on password;Privileged access password |
| |
|
| Warranty |
| Type of warranty service |
On-site Repair |
| Warranty period |
Three year parts and labour |
| |
|
| Expansion Options |
| Expansion Options 1 |
| Port connectors |
Serial |
| Expansion Options 2 |
| Port connectors |
Video |
| Expansion Options 3 |
| Port connectors |
2 RJ-45 |
| Expansion Options 4 |
| Port connectors |
2 USB 2.0 (back) |
| Expansion Options 5 |
| Port connectors |
2 USB 2.0 (front) |
Processor |
|---|
| CPU clock-hastighed | 2.8 GHz |
| Processor familie | Intel Xeon |
| Processortype | X3460 |
| Processor antallet af kerner | 4 |
| Antal installerede processorer | 1 |
| L3 cache | 8 MB |
| Systembus | 2.5 GT/s |
| Producent processor | Intel |
| Max. number of SMP processors | 1 |
| Processor socket | Socket 1156 |
Lagermedie |
|---|
| Hard disk størrelse | 88.9 mm (3.5 ") |
| Hard drive interface | SATA, Serial Attached SCSI (SAS) |
| RAID understøttelse | Ja |
| RAID-niveauer | 0, 1 |
| Maksimalt antal drev pr. kabinet | 4 |
| Maksimal lagringskapacitet | 2 TB |
| Hot-swap | Ja |
Hukommelse |
|---|
| Intern hukommelse | 2 GB |
| Intern hukommelse, teknologi | DDR3 |
| Maximum intern hukommelse | 32 GB |
| Maximum intern hukommelse | 32768 MB |
| Hukommelsessokler | 6 x DIMM |
| Memory clock speed | 1333 Mhz |
| Hukommelse layout | 2 x 1 GB |
Graphics |
|---|
| Grafik-adapter, maksimal hukommelse | 16 MB |
| Grafik-adapter | ES1000 |
| memory type | DDR2 |
| Graphics adapter family | ATI |
Optisk drev |
|---|
| Optisk drevtype | Nej |
Netværk |
|---|
| Forberedt til netværk | Ja |
| Netværk features | Gigabit Ethernet |
| Wake-on-LAN klar | Ja |
| Ethernet LAN-forbindelse | Ja |
| Kablingsteknologi | 10/100/1000Base-T(X) |
Tilslutning |
|---|
| USB 2.0 porte, antal | 7 |
| VGA (D-Sub) porte antal | 1 |
| Ethernet LAN (RJ-45) porte, antal | 2 |
| Antal serielle porte | 1 |
Udvidelsessokler |
|---|
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 2 |
| PCI Express slots version | 2.0 |
Strømstyring |
|---|
| Redundant strømforsyning | Nej |
| Strømforsyning, type | AC/DC |
| Numre af Power Supply | 1 |
| Strømforsyning | 351 W |
Vægt og størrelse |
|---|
| Bredde | 218 mm |
| Dybde | 767 mm |
| Højde | 440 mm |
| Vægt | 38 kg |
Godkendelser |
|---|
| Energy Star certificeret | Ja |
| Overholdelse af branchestandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Operativsystem/Software |
|---|
| Kompatible operativsystemer | Windows Server 2008 STD, EE, R2
Windows Server 2008 x64 STD, EE, DC
Windows Small Business Server
Red Hat Linux
SUSE Linux |
| Operating System tilbudt | Nej |
Tekniske detaljer |
|---|
| Kabinettype | Rack (1U) |
Other features |
|---|
| Vægt | 38 kg |
| Mac kompabilitet | Nej |
